Lab 6: Docker Run vs Docker Compose

Part A: Single Container (Docker Run vs Docker Compose)

Lab 1: Running Nginx using Docker Run

mkdir html
echo "<h1>Hello from Docker Run</h1>" > html/index.html

docker run -d \
  --name lab-nginx \
  -p 8081:80 \
  -v $(pwd)/html:/usr/share/nginx/html \
  nginx:alpine

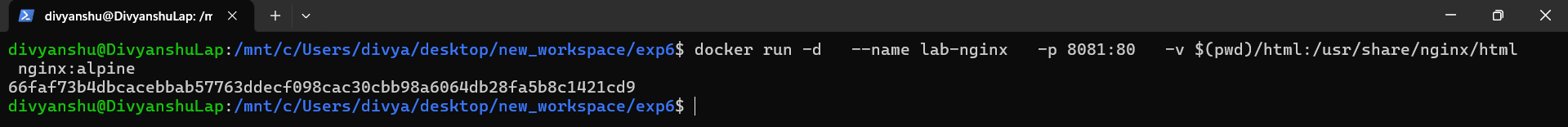

📸 Screenshot – docker run command executing, container ID returned:

docker run nginx

docker ps

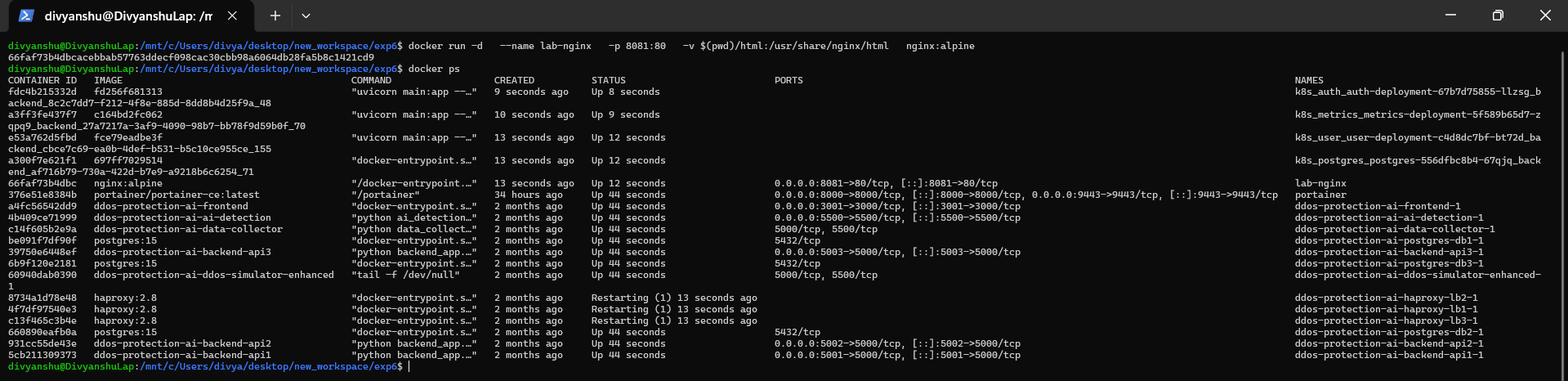

📸 Screenshot – docker ps showing lab-nginx running on port 8081:

docker ps nginx

Lab 2: Running Nginx using Docker Compose

version: '3.8'

services:
  nginx:
    image: nginx:alpine
    container_name: lab-nginx
    ports:
      - "8081:80"
    volumes:
      - ./html:/usr/share/nginx/html

docker compose up -d

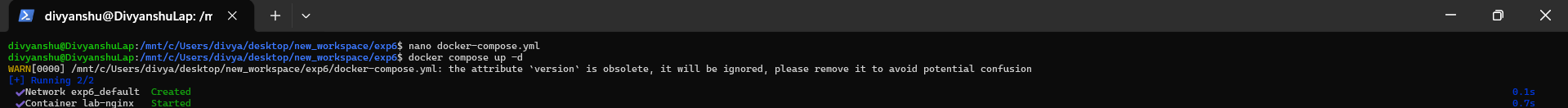

📸 Screenshot – docker compose up creating network and starting container:

compose up

docker compose ps

📸 Screenshot – docker compose ps showing lab-nginx running:

compose ps

docker compose down

📸 Screenshot – docker compose down removing container and network:

compose down

Part B: Multi-Container Application (WordPress + MySQL)

Lab 1: Using Docker Run

docker network create wp-net

docker run -d \
  --name mysql \
  --network wp-net \
  -e MYSQL_ROOT_PASSWORD=secret \
  -e MYSQL_DATABASE=wordpress \
  mysql:5.7

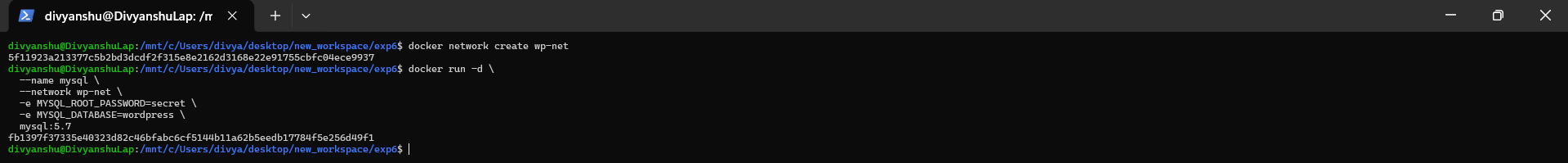

📸 Screenshot – network created and MySQL container started:

network and mysql

docker run -d \
  --name wordpress \
  --network wp-net \
  -p 8082:80 \
  -e WORDPRESS_DB_HOST=mysql \
  -e WORDPRESS_DB_PASSWORD=secret \
  wordpress:latest

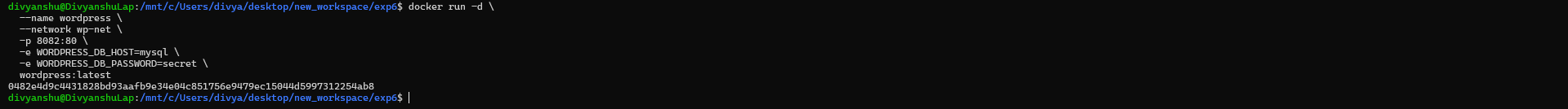

📸 Screenshot – WordPress container started:

wordpress run

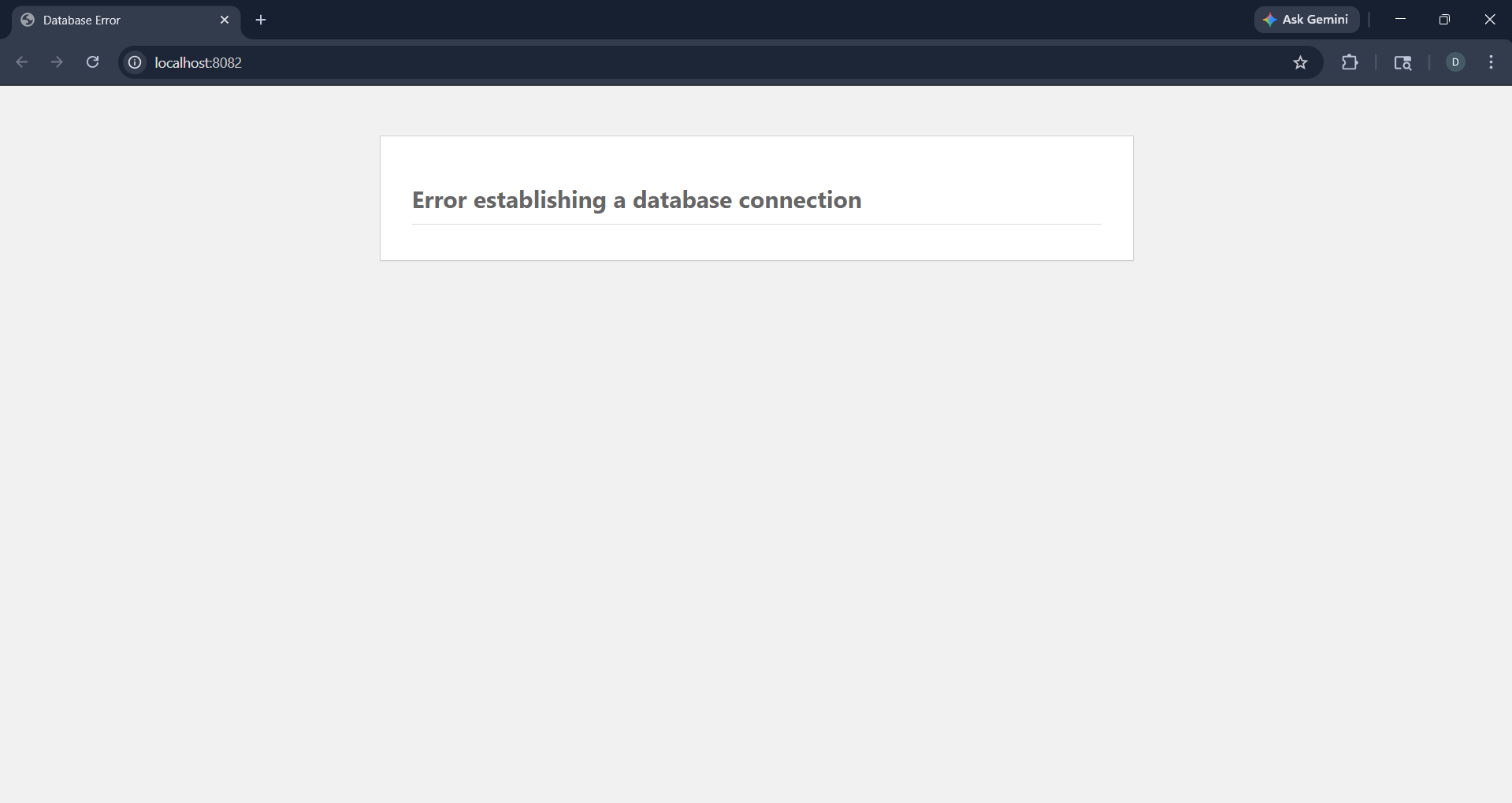

📸 Screenshot – Browser at localhost:8082 (DB connection error while containers initialize):

wp browser error

Lab 2: Using Docker Compose

version: '3.8'

services:
  mysql:
    image: mysql:5.7
    environment:
      MYSQL_ROOT_PASSWORD: secret
      MYSQL_DATABASE: wordpress
    volumes:
      - mysql_data:/var/lib/mysql

  wordpress:
    image: wordpress:latest
    ports:
      - "8082:80"
    environment:
      WORDPRESS_DB_HOST: mysql
      WORDPRESS_DB_PASSWORD: secret
    depends_on:
      - mysql

volumes:
  mysql_data:

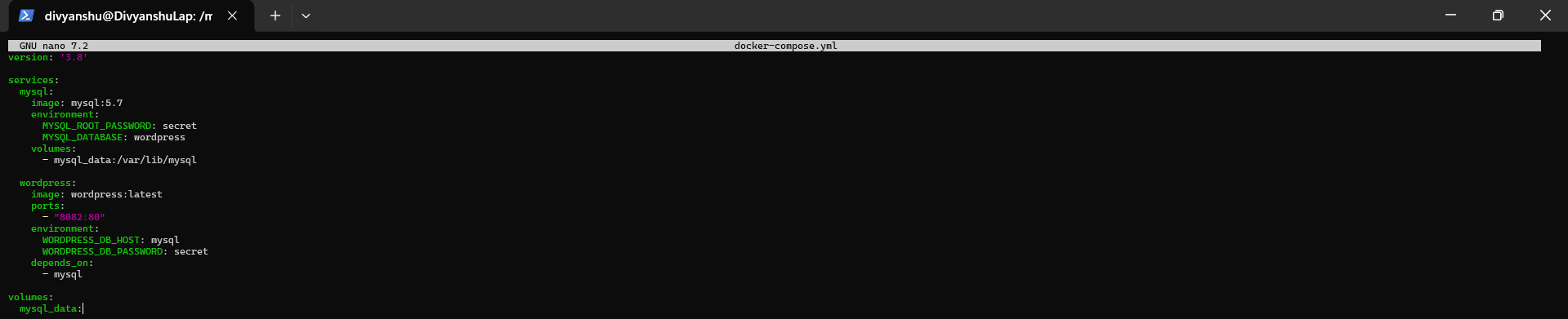

📸 Screenshot – docker-compose.yml file in nano editor:

compose yml

docker compose up -d

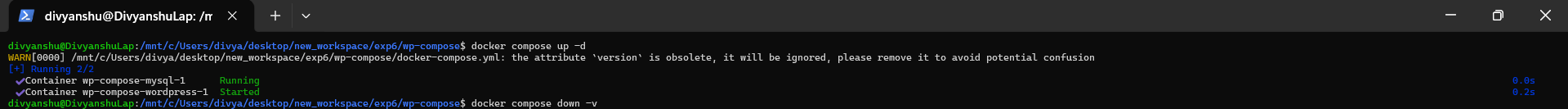

📸 Screenshot – docker compose up starting MySQL and WordPress containers:

compose wp up

docker compose down -v

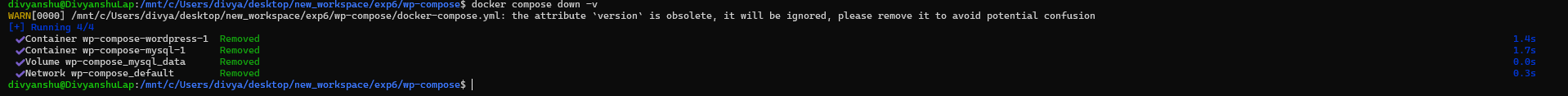

📸 Screenshot – docker compose down -v removing containers, volumes and network:

compose wp down

Part C: Conversion & Configuration Tasks

Lab 1: Convert Docker Run to Docker Compose

Given Docker Run command:

docker run -d \
  --name webapp \
  -p 5000:5000 \
  -e APP_ENV=production \
  -e DEBUG=false \
  --restart unless-stopped \
  node:18-alpine

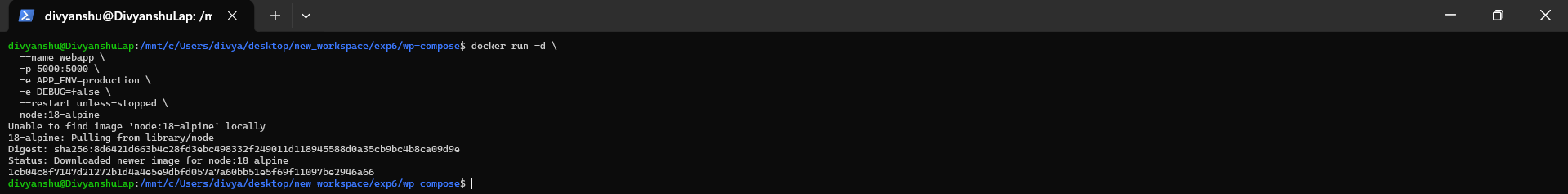

📸 Screenshot – docker run webapp command executing:

docker run webapp

Equivalent docker-compose.yml:

version: '3.8'

services:
  webapp:
    image: node:18-alpine
    container_name: webapp
    ports:
      - "5000:5000"
    environment:
      APP_ENV: production
      DEBUG: "false"
    restart: unless-stopped

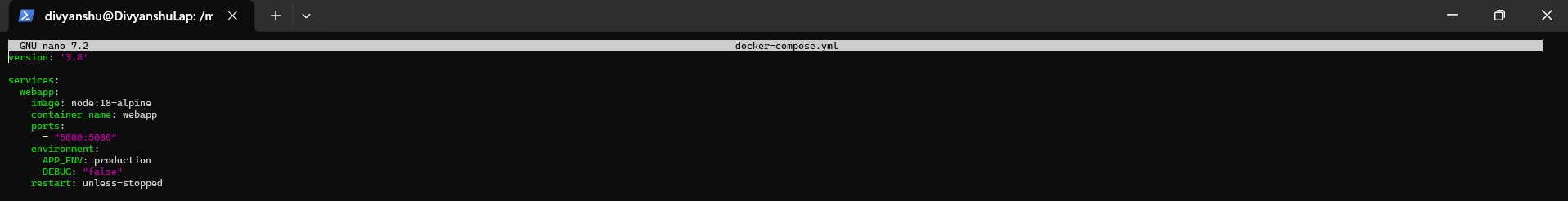

📸 Screenshot – docker-compose.yml equivalent in nano editor:

webapp compose yml

docker compose up -d
docker compose ps

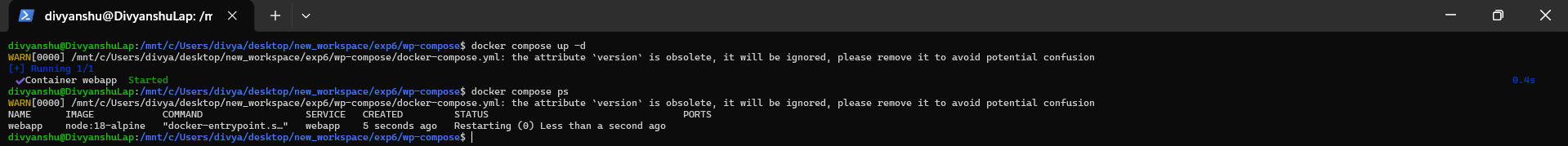

📸 Screenshot – webapp compose up and ps output:

webapp compose up

Lab 2: Volume + Network Configuration

Given Docker Run commands:

docker network create app-net

docker run -d \
  --name postgres-db \
  --network app-net \
  -e POSTGRES_USER=admin \
  -e POSTGRES_PASSWORD=secret \
  -v pgdata:/var/lib/postgresql/data \
  postgres:15

docker run -d \
  --name backend \
  --network app-net \
  -p 8000:8000 \
  -e DB_HOST=postgres-db \
  -e DB_USER=admin \
  -e DB_PASS=secret \
  python:3.11-slim

Equivalent docker-compose.yml:

version: '3.8'

services:
  postgres-db:
    image: postgres:15
    container_name: postgres-db
    environment:
      POSTGRES_USER: admin
      POSTGRES_PASSWORD: secret
    volumes:
      - pgdata:/var/lib/postgresql/data
    networks:
      - app-net

  backend:
    image: python:3.11-slim
    container_name: backend
    ports:
      - "8000:8000"
    environment:
      DB_HOST: postgres-db
      DB_USER: admin
      DB_PASS: secret
    depends_on:
      - postgres-db
    networks:
      - app-net

volumes:
  pgdata:

networks:
  app-net:

docker compose up -d
docker compose down -v

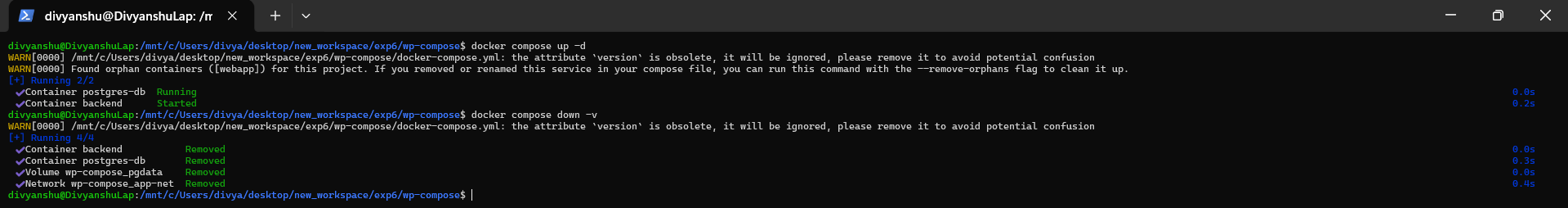

📸 Screenshot – postgres-db and backend compose up, then down -v with volumes and network removed:

volume network compose

Lab 3: Resource Limits Conversion

Given Docker Run command:

docker run -d \
  --name limited-app \
  -p 9000:9000 \
  --memory="256m" \
  --cpus="0.5" \
  --restart always \
  nginx:alpine

Equivalent docker-compose.yml:

version: '3.8'

services:
  limited-app:
    image: nginx:alpine
    container_name: limited-app
    ports:
      - "9000:9000"
    restart: always
    deploy:
      resources:
        limits:
          memory: 256M
          cpus: "0.5"

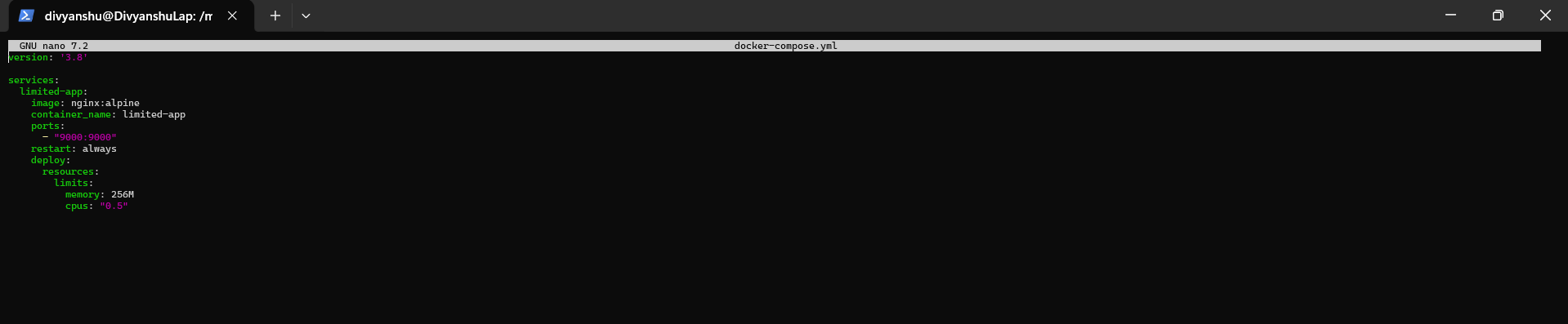

📸 Screenshot – resource limits docker-compose.yml in nano editor:

resource limits yml

docker compose up -d
docker compose down

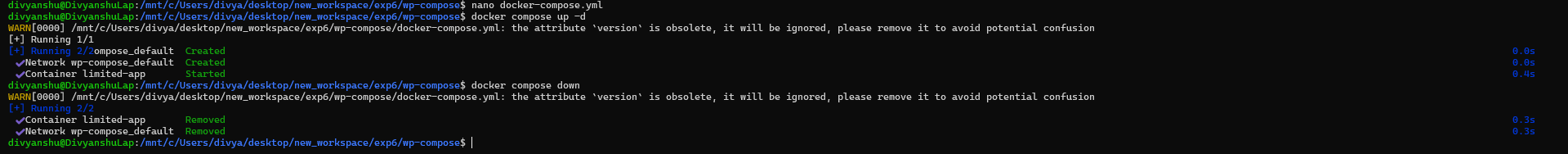

📸 Screenshot – limited-app compose up and down:

resource limits run

Part D: Dockerfile + Compose (Build-Based)

Lab 1: Create the Node.js Application

Step 1: Create app.js

const http = require('http');

http.createServer((req, res) => {
  res.end("Docker Compose Build Lab");
}).listen(3000);

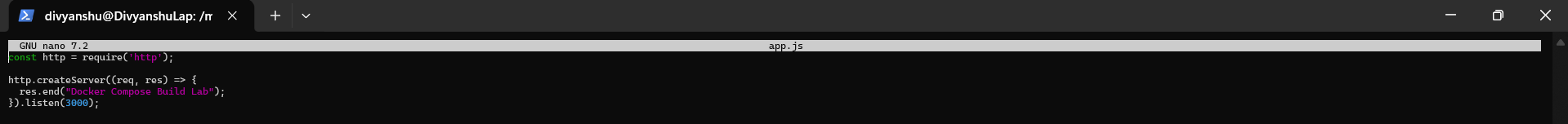

📸 Screenshot – app.js in nano editor:

app js

Step 2: Create Dockerfile

FROM node:18-alpine

WORKDIR /app

COPY app.js .

EXPOSE 3000

CMD ["node", "app.js"]

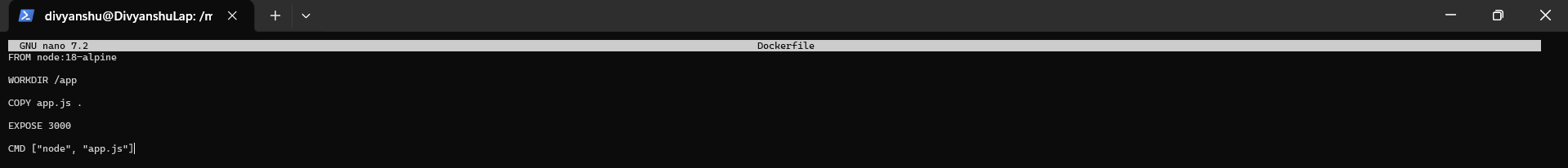

📸 Screenshot – Dockerfile in nano editor:

dockerfile

Step 3: Create docker-compose.yml with build:

version: '3.8'

services:
  nodeapp:
    build:
      context: .
      dockerfile: Dockerfile
    container_name: custom-node-app
    ports:
      - "3000:3000"

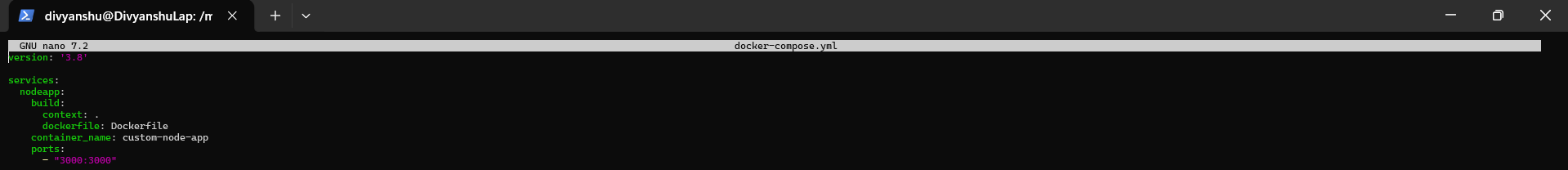

📸 Screenshot – build-based docker-compose.yml in nano editor:

build compose yml

Lab 2: Build and Run

docker compose up --build -d

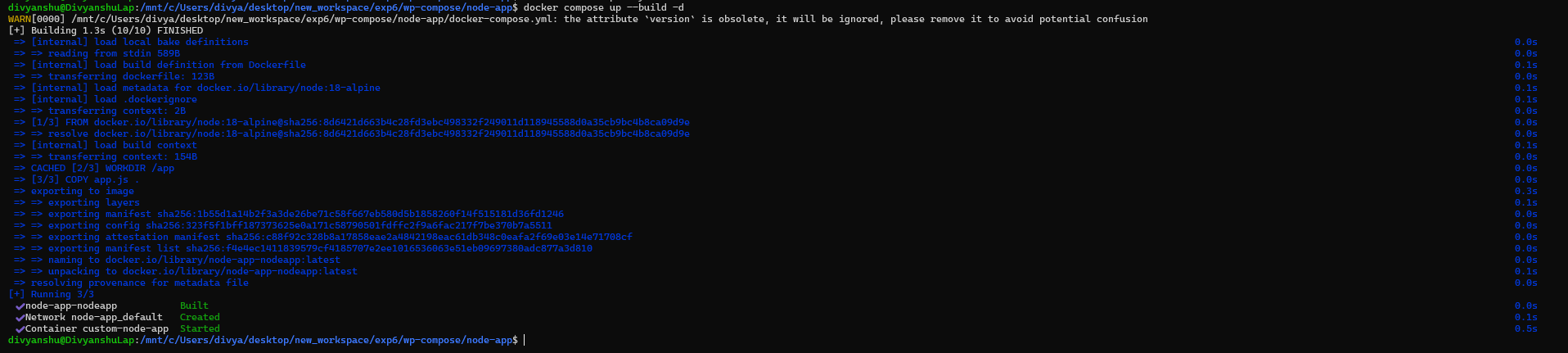

📸 Screenshot – docker compose up –build, image built and container started:

compose build

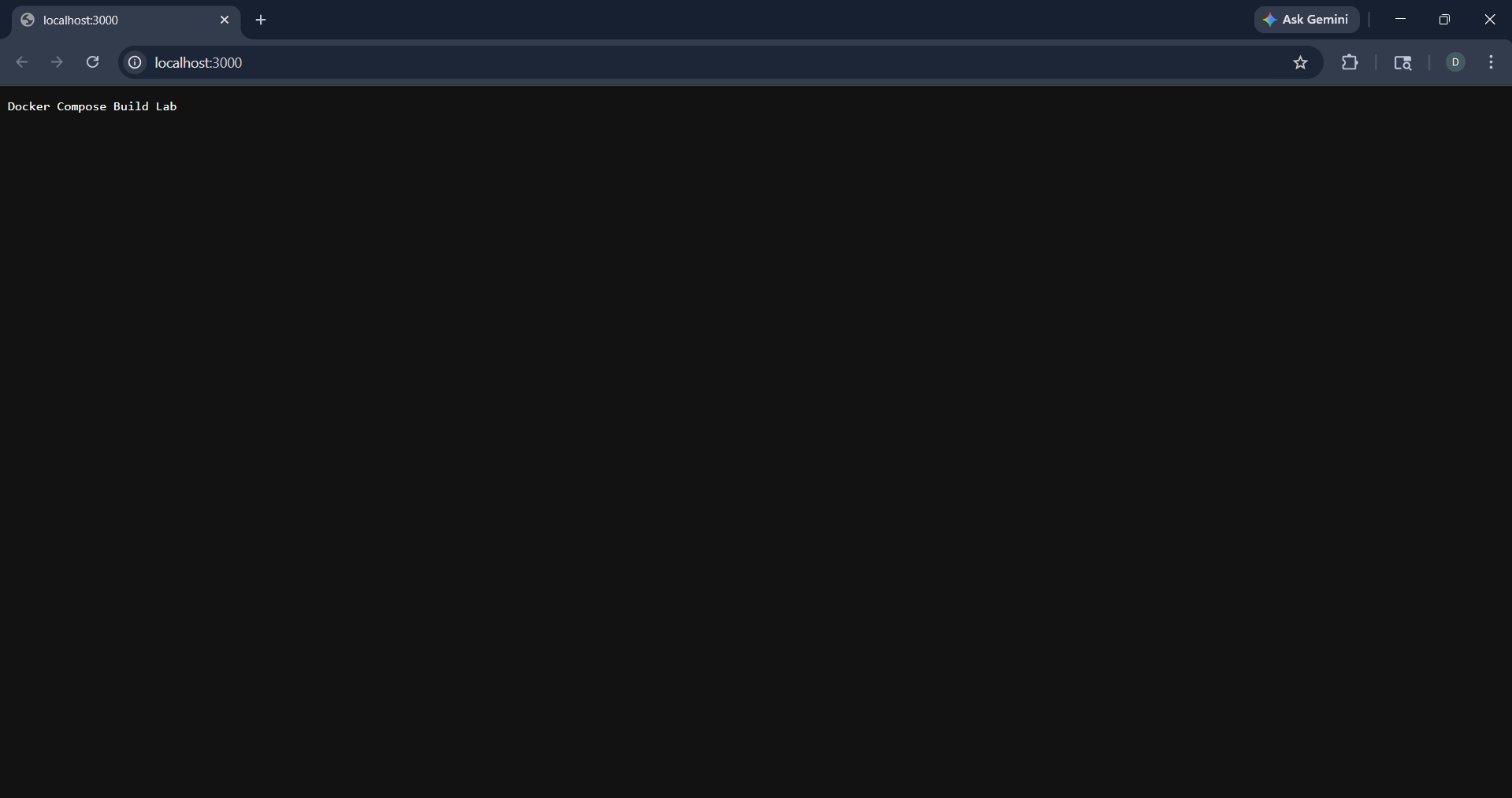

📸 Screenshot – browser at localhost:3000 showing “Docker Compose Build Lab”:

node app browser
